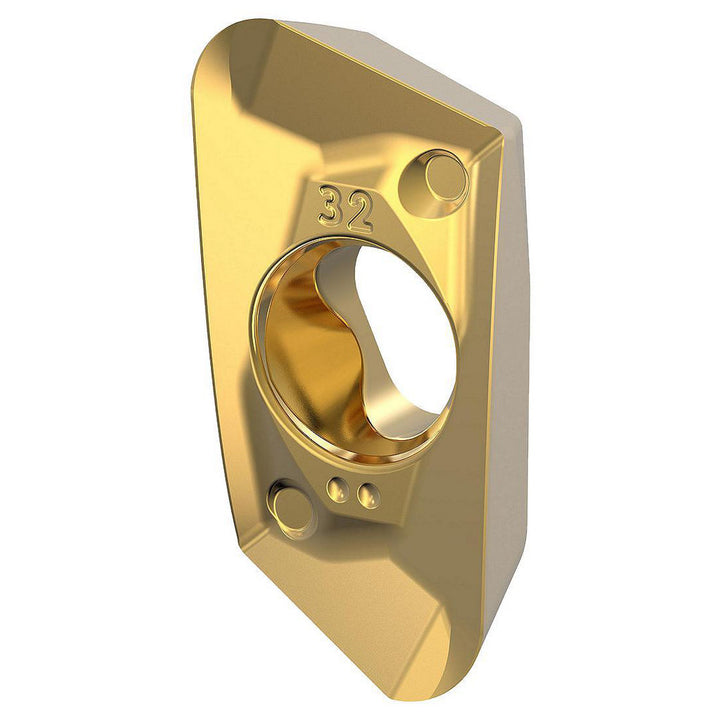

EDPT180532PDERHD Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2877461
MFR# 2877461ISO/ANSI# EDPT180532PDERHDCat# EDPT180532PDERHDSeries EDPT
$29.01List $35.41
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKCPK30
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 2877461 is a EDPT180532PDERHD solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi codeEP1832EHD
Chip breakerHD
Coating finishTiN
Coating processCVD
Corner radius0.1260
Cutter series compatibilityMill 1-18
Cutting edge styleHoned
Included angle degree70
Inscribed circle0.4260
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code1832
Insert styleEDPT
Iso codeEDPT180532PDERHD
Length0.8580
Length range0.7000 to 0.9000
Manufacturers catalog numberEDPT180532PDERHD
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2165
Thickness range0.2000 to 0.2200
Width0.4264
