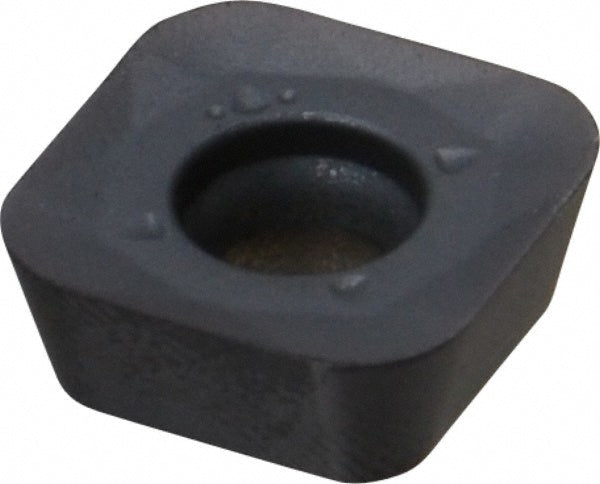

SDCT120432ENLD2 Solid Carbide Insert, Grade KC522M, TiAlN - Kennametal 2889261
MFR# 2889261ISO/ANSI# SDCT120432ENLD2Cat# SDCT120432ENLD2Series SDCT
$29.91List $36.51
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKC522M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 2889261 is a SDCT120432ENLD2 solid carbide indexable insert, grade KC522M, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Chip breakerLD2
Coating finishTiAlN
Coating processPVD
Corner radius0.1260
Hole diameter0.1732
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size43
Insert size code438
Insert styleSDCT
Iso codeSDCT120432ENLD2
Manufacturers catalog numberSDCT120432ENLD2
Manufacturer gradeKC522M
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeC1
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Relief angle15.00
Thickness in3/16
Thickness range0.1850 to 0.2000
