Kennametal

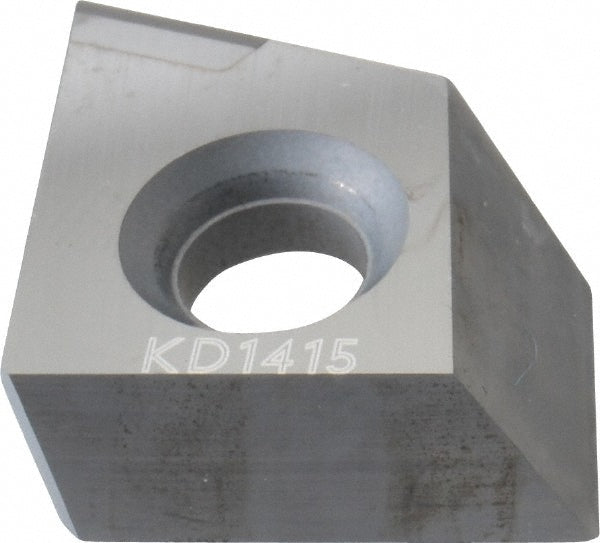

BGHX15L5PCSRLET Diamond Tipped Insert, Grade KD1415 - Kennametal 2951623
MFR# 2951623ISO/ANSI# BGHX15L5PCSRLETCat# BGHX15L5PCSRLETSeries BGHX
$114.73List $137.57
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeIrregular
GradeKD1415
MaterialDiamond Tipped
Description
The Kennametal 2951623 is a BGHX15L5PCSRLET diamond tipped indexable insert, grade KD1415. Suited for non-ferrous metal.
Specifications
Ansi codeBGHX15L5PCSRLET
Chip breakerFlat Top
Coating processUncoated
Cutter series compatibilityFix-Perfect
Cutting edge styleChamfered; Honed
Hole diameter0.1969
Included angle degree90
Inscribed circle0.1969
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialDiamond Tipped
Insert shapeIrregular
Insert size15
Insert size code15L5
Insert styleBGHX
Iso codeBGHX15L5PCSRLET
Length0.4134
Length range0.4000 to 0.4500
Manufacturers catalog numberBGHX15L5PCSRLET
Manufacturer gradeKD1415
Material applicationNon-Ferrous Metal
Material gradePCD
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle30.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1970
Thickness range0.1850 to 0.2000
