Kennametal

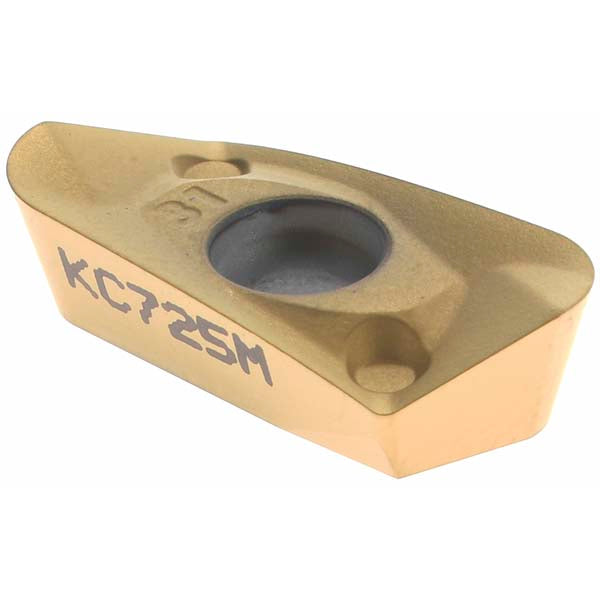

EDCT140431PDERGD Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 2983891
MFR# 2983891ISO/ANSI# EDCT140431PDERGDCat# EDCT140431PDERGDSeries EDCT
$30.01List $36.64
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 2983891 is a EDCT140431PDERGD solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeEC1431EGD
Chip breakerGD
Coating finishTiAlN
Coating processPVD
Corner radius0.1220
Cutter series compatibilityMill 1-14
Cutting edge styleHoned
Hole diameter0.1339
Included angle degree70
Inscribed circle0.3310
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size14
Insert size code1431
Insert styleEDCT
Iso codeEDCT140431PDERGD
Length0.6890
Length range0.6500 to 0.7000
Manufacturers catalog numberEDCT140431PDERGD
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1770
Thickness range0.1750 to 0.1850
Width0.3310
