Kennametal

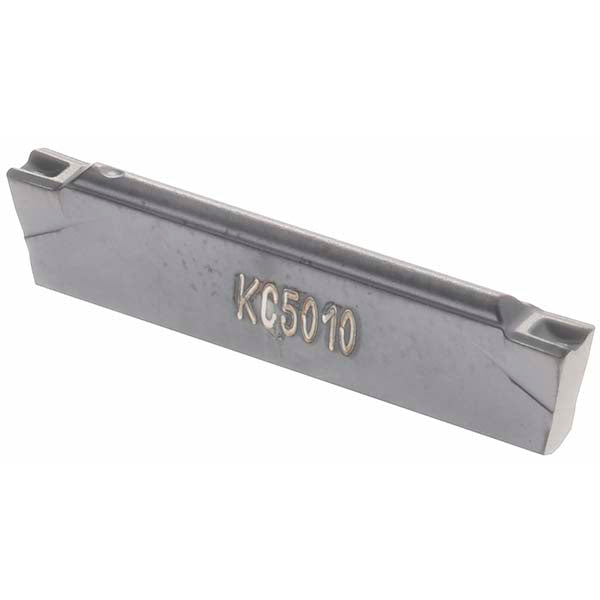

Carbide Insert, Grade KC5010, TiAlN - Kennametal 2984015
MFR# 2984015Series A4
$37.93List $46.30
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 2984015 is a carbide indexable insert, grade KC5010, TiAlN coated.
Specifications
Chip breakerGMP
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Cutting width0.0787
Full radiusNo
Insert handNeutral
Insert materialCarbide
Insert size200
Insert styleG
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.0787
Maximum depth of cut range0.0750 to 0.1000
Measurement typeMetric
Multi use toolNo
Overall length0.7874
RakePositive
