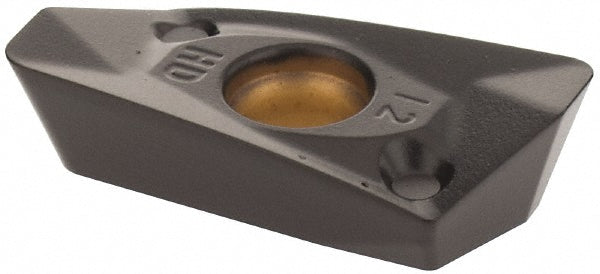

EDPT140412PDERHD Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 3033726
MFR# 3033726ISO/ANSI# EDPT140412PDERHDCat# EDPT140412PDERHDSeries EDPT
$28.01List $34.19
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKCPK30
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 3033726 is a EDPT140412PDERHD solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi codeEP1412EHD
Chip breakerHD
Coating finishTiN
Coating processCVD
Corner radius in3/64
Cutter series compatibilityMill 1-14
Cutting edge styleHoned
Hole diameter0.1339
Included angle degree70
Inscribed circle0.3291
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size14
Insert size code1412
Insert styleEDPT
Iso codeEDPT140412PDERHD
Length0.6882
Length range0.6500 to 0.7000
Manufacturers catalog numberEDPT140412PDERHD
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1772
Thickness range0.1750 to 0.1850
Width0.3291
