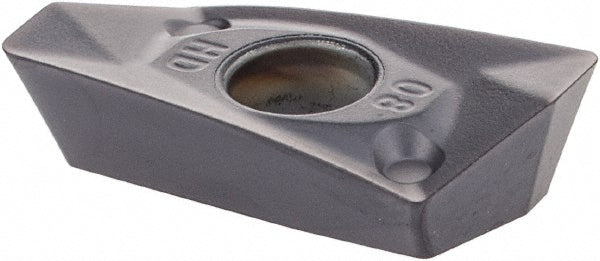

EDPT140408PDERHD Solid Carbide Insert, Grade KC520M, TiAlN - Kennametal 3033727
MFR# 3033727ISO/ANSI# EDPT140408PDERHDCat# EDPT140408PDERHDSeries EDPT
$29.29List $35.75
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC520M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 3033727 is a EDPT140408PDERHD solid carbide indexable insert, grade KC520M, TiAlN coated. Suited for cast iron.
Specifications
Ansi codeEP1408EHD
Chip breakerHD
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMill 1-14
Cutting edge styleHoned
Hole diameter0.1339
Included angle degree70
Inscribed circle0.3298
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size14
Insert size code1408
Insert styleEDPT
Iso codeEDPT140408PDERHD
Length in11/16
Length range0.6500 to 0.7000
Manufacturers catalog numberEDPT140408PDERHD
Manufacturer gradeKC520M
Material applicationCast Iron
Material gradeC1; C2
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1772
Thickness range0.1750 to 0.1850
Width0.3299
