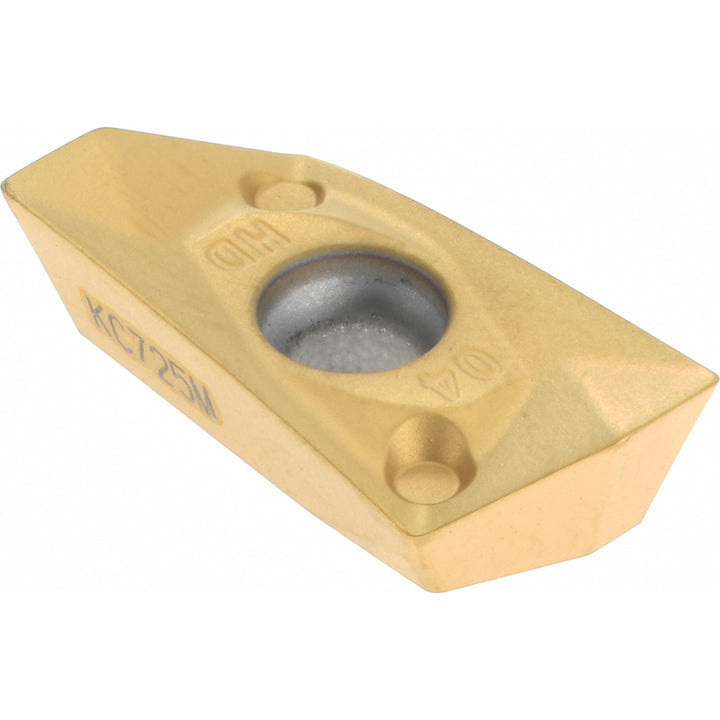

EDPT140404PDERHD Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 3051863
MFR# 3051863ISO/ANSI# EDPT140404PDERHDCat# EDPT140404PDERHDSeries EDPT
$26.97List $32.92
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 3051863 is a EDPT140404PDERHD solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeEP1404EHD
Chip breakerHD
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityMill 1-14
Cutting edge styleHoned
Hole diameter0.1339
Included angle degree70
Inscribed circle0.3304
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size14
Insert size code1404
Insert styleEDPT
Iso codeEDPT140404PDERHD
Length in11/16
Length range0.6500 to 0.7000
Manufacturers catalog numberEDPT140404PDERHD
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1770
Thickness range0.1750 to 0.1850
Width0.3300
