Kennametal

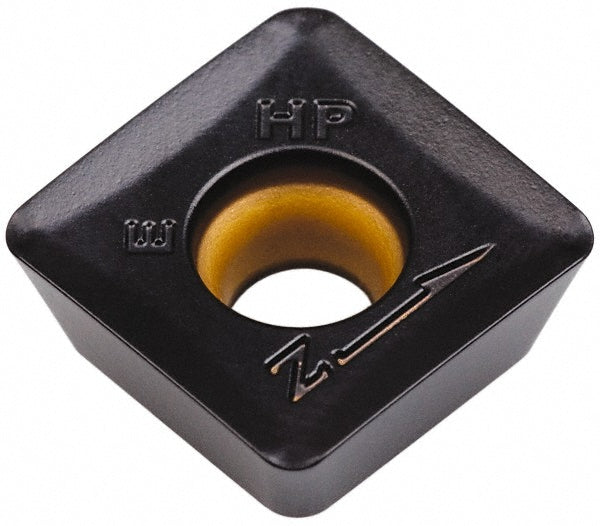

SDPT120412PDENHPZ Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 3106096
MFR# 3106096ISO/ANSI# SDPT120412PDENHPZCat# SDPT120412PDENHPZSeries SDPT
$31.00List $37.83
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKCPK30
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 3106096 is a SDPT120412PDENHPZ solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi codeSDPT433PDENHPZ
Chip breakerHPZ
Coating finishTiN
Coating processCVD
Corner radius in3/64
Cutter series compatibilityKSSM
Cutting edge styleHoned
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code433
Insert styleSDPT
Iso codeSDPT120412PDENHPZ
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSDPT120412PDENHPZ
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
