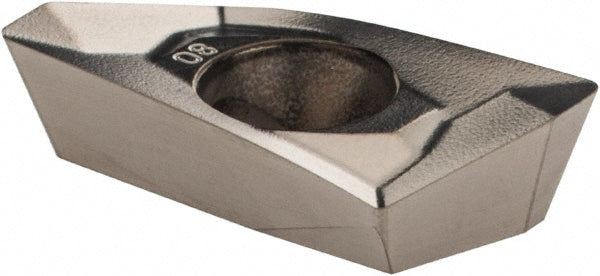

EDCT180508PDERLDJ Solid Carbide Insert, Grade KC422M, TiB2 - Kennametal 3292774
MFR# 3292774ISO/ANSI# EDCT180508PDERLDJCat# EDCT180508PDERLDJSeries EDCT
$34.59List $42.22
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC422M
MaterialSolid Carbide
CoatingTiB2
Description
The Kennametal 3292774 is a EDCT180508PDERLDJ solid carbide indexable insert, grade KC422M, TiB2 coated. Suited for non-ferrous metal.
Specifications
Ansi codeEC1808EJ
Chip breakerEJ
Coating finishTiB2
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMill 1-18
Cutting edge styleHoned
Included angle degree70
Inscribed circle0.4319
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code1808
Insert styleEDCT
Iso codeEDCT180508PDERLDJ
Length0.8567
Length range0.7000 to 0.9000
Manufacturers catalog numberEDCT180508PDERLDJ
Manufacturer gradeKC422M
Material applicationNon-Ferrous Metal
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle15
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2165
Thickness range0.2000 to 0.2200
Width0.4319
