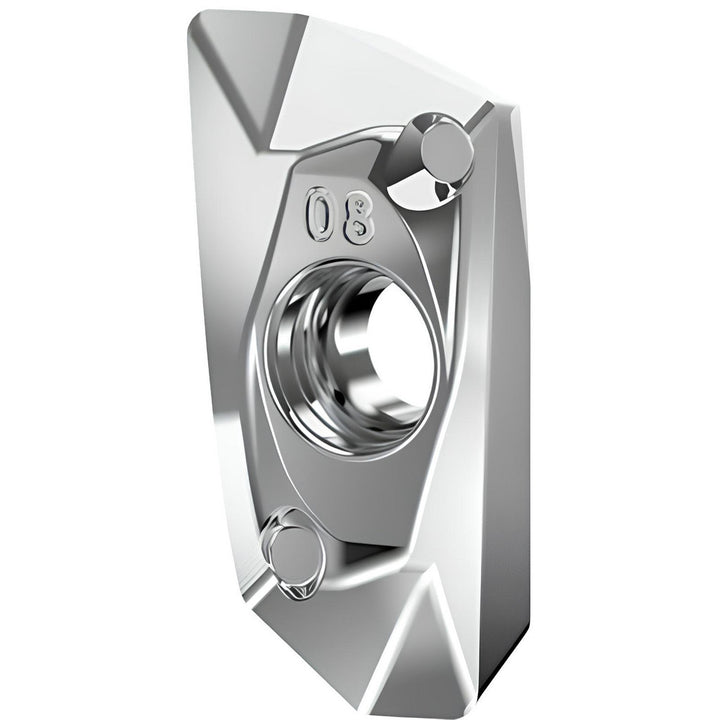

EDCT140408PDERLDJ Solid Carbide Insert, Grade KC422M, TiB2 - Kennametal 3324994
MFR# 3324994ISO/ANSI# EDCT140408PDERLDJCat# EDCT140408PDERLDJSeries EDCT
$28.65List $34.96
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC422M
MaterialSolid Carbide
CoatingTiB2
Description
The Kennametal 3324994 is a EDCT140408PDERLDJ solid carbide indexable insert, grade KC422M, TiB2 coated. Suited for non-ferrous metal.
Specifications
Ansi codeEC1408ELDJ
Chip breakerLDJ
Coating finishTiB2
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMill 1-14
Cutting edge styleHoned
Included angle degree70
Inscribed circle0.3337
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size14
Insert size code1408
Insert styleEDCT
Iso codeEDCT140408PDERLDJ
Length in11/16
Length range0.6500 to 0.7000
Manufacturers catalog numberEDCT140408PDERLDJ
Manufacturer gradeKC422M
Material applicationNon-Ferrous Metal
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle15
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1772
Thickness range0.1750 to 0.1850
Width0.3339
