Kennametal

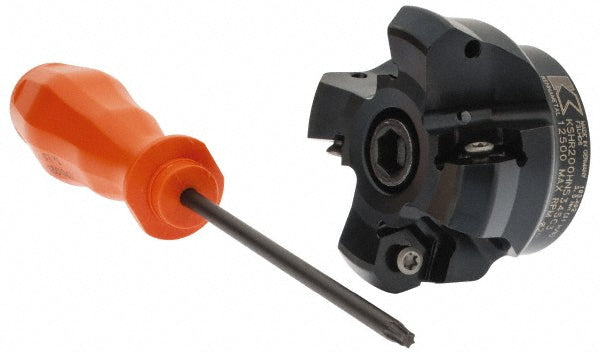

Indexable Milling Cutters - Kennametal 3326850
MFR# 3326850Series KSHR
$586.06List $715.37
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Kennametal 3326850 indexable milling cutters. Series KSHR.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeHNGJ 535-GD
Complete insert compatibilityHNGJ 535ANENLD; HNGJ 535ANSNGD
Coolant throughYes
Cutter styleKSHR
Cutting directionRight Hand
Hub diameter1.5930
Insert holding methodScrew
Maximum body diameter2.4340
Maximum cutting diameter2.4340
Maximum depth of cut0.1780
Maximum rpm12500
Minimum cutting diameter in2
Number of cutter inserts4
Number of flutes4
Overall height1.5700
Pitch typeCoarse
