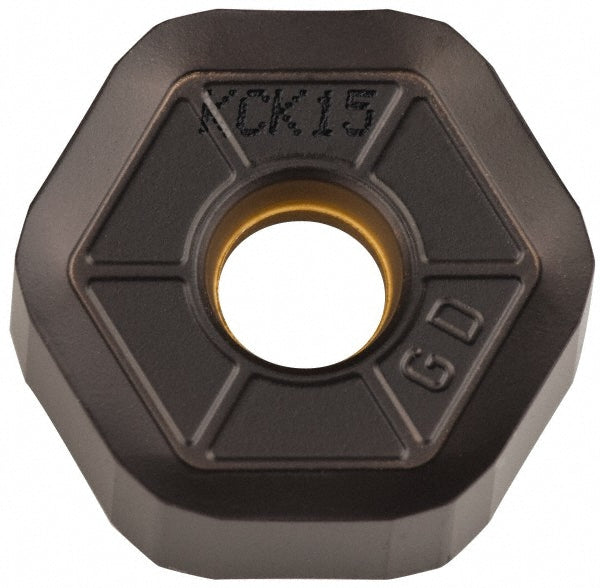

HNGJ0905ANSNGD Solid Carbide Insert, Grade KCK15, TiN - Kennametal 3331173

Kennametal

HNGJ0905ANSNGD Solid Carbide Insert, Grade KCK15, TiN - Kennametal 3331173

MFR# 3331173ISO/ANSI# HNGJ0905ANSNGDCat# HNGJ0905ANSNGDSeries HNGJ

$39.62List $48.36 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeHexagon
GradeKCK15
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 3331173 is a HNGJ0905ANSNGD solid carbide indexable insert, grade KCK15, TiN coated. Suited for cast iron.

Specifications

Ansi codeHNGJ535ANSNGD
Chip breakerGD
Coating finishTiN
Coating processMTCVD
Corner radius in3/64
Cutter series compatibilityDodeka
Cutting edge styleChamfered; Honed
Included angle degree120
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size5
Insert size code535
Insert styleHNGJ
Iso codeHNGJ0905ANSNGD
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberHNGJ0905ANSNGD
Manufacturer gradeKCK15
Material applicationCast Iron
Material gradeC1
Multi use toolYes
Number of cutting edges12
Primary workpiece materialCast Iron
RakeNegative
Rake angle15
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in5/8
