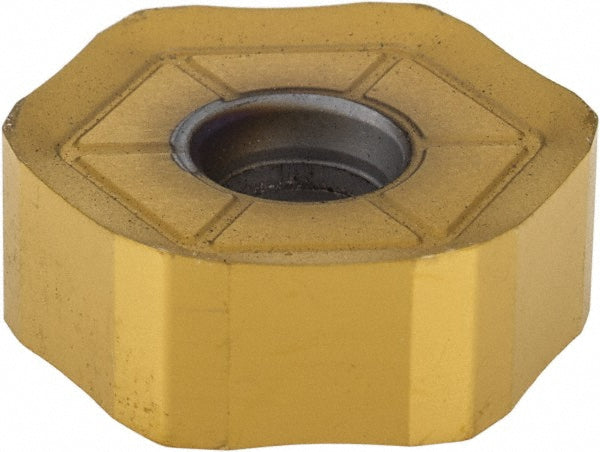

HNGJ0905ANENLD Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 3331175
MFR# 3331175ISO/ANSI# HNGJ0905ANENLDCat# HNGJ0905ANENLDSeries HNGJ
$42.19List $51.50
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeHexagon
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 3331175 is a HNGJ0905ANENLD solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeHNGJ535ANENLD
Chip breakerLD
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityDodeka
Cutting edge styleHoned
Included angle degree120
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size5
Insert size code535
Insert styleHNGJ
Iso codeHNGJ0905ANENLD
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberHNGJ0905ANENLD
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges12
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle15
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in5/8
