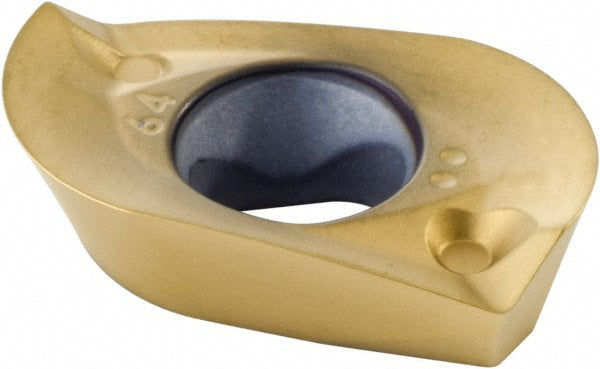

EDPT180564PDERHD Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 3379064
MFR# 3379064ISO/ANSI# EDPT180564PDERHDCat# EDPT180564PDERHDSeries EDPT
$27.75List $33.87
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 3379064 is a EDPT180564PDERHD solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeEP1864EHD
Chip breakerHD
Coating finishTiAlN
Coating processPVD
Corner radius in1/4
Cutter series compatibilityMill 1-18
Cutting edge styleHoned
Included angle degree70
Inscribed circle0.4196
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code1864
Insert styleEDPT
Iso codeEDPT180564PDERHD
Length0.7399
Length range0.7000 to 0.9000
Manufacturers catalog numberEDPT180564PDERHD
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2165
Thickness range0.2000 to 0.2200
Width0.4196
