Carbide Insert, Grade KCMS15, AlTiN - Kennametal 3381147

Kennametal

Carbide Insert, Grade KCMS15, AlTiN - Kennametal 3381147

MFR# 3381147Series KSEM

$200.81List $245.12 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeKCMS15
CoatingAlTiN

Description

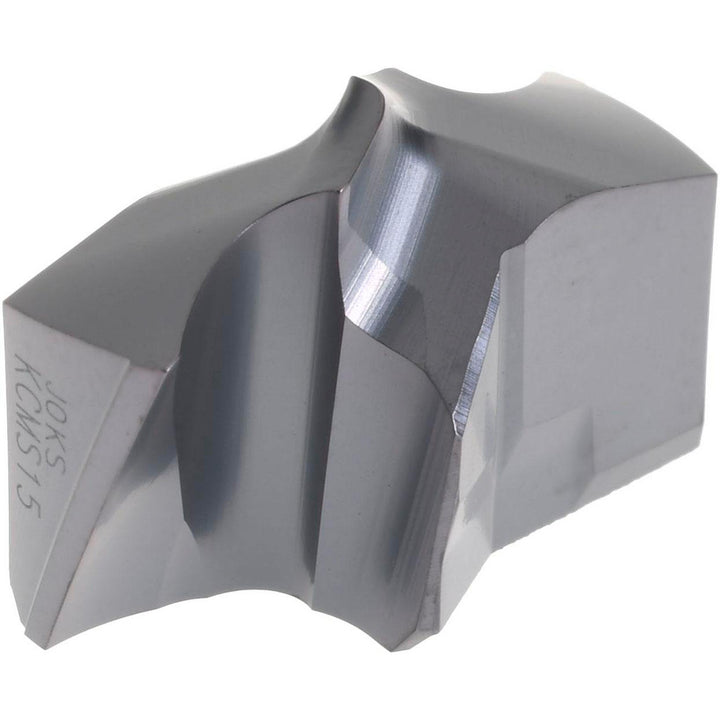

The Kennametal 3381147 is a carbide indexable insert, grade KCMS15, AlTiN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsDrilling
Coating finishAlTiN
Coating processPVD
Coolant throughNo
Cutting diameter in3/4
DrillingStackedPlates
Drill point angle140
Flute length (mm)10.00
Flute typeHelical
Functional length0.3750
Height in3/8
Included angle degree140
Insert geometryHPL
Insert holding methodClamp
Insert seat size2
Iso numberKSEM0750HPL
Manufacturer gradeKCMS15
Material gradeFine Grain
Number of flutes2
Overall length projection0.3750
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Spiral typeRegular Spiral
StyleKSEM
Tip materialSolid Carbide
Tooldimensions2flute/2margin/coolant
