Carbide Insert, Grade KCMS15, AlTiN - Kennametal 3381182

Kennametal

Carbide Insert, Grade KCMS15, AlTiN - Kennametal 3381182

MFR# 3381182Series KSEM

$290.58List $354.69 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeKCMS15
CoatingAlTiN

Description

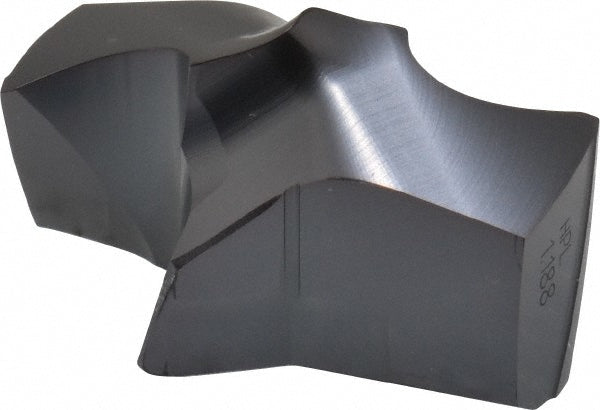

The Kennametal 3381182 is a carbide indexable insert, grade KCMS15, AlTiN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsDrilling
Coating finishAlTiN
Coating processPVD
Coolant throughNo
Cutting diameter1.1874
DrillingStackedPlates
Drill point angle140
Flute length (mm)15.00
Flute typeHelical
Functional length0.5935
Height in19/32
Included angle degree140
Insert geometryHPL
Insert holding methodClamp
Insert seat size8
Iso numberKSEM1188HPL
Manufacturer gradeKCMS15
Material gradeFine Grain
Number of flutes2
Overall length projection0.5935
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Spiral typeRegular Spiral
StyleKSEM
Tip materialSolid Carbide
Tooldimensions2flute/2margin/coolant
