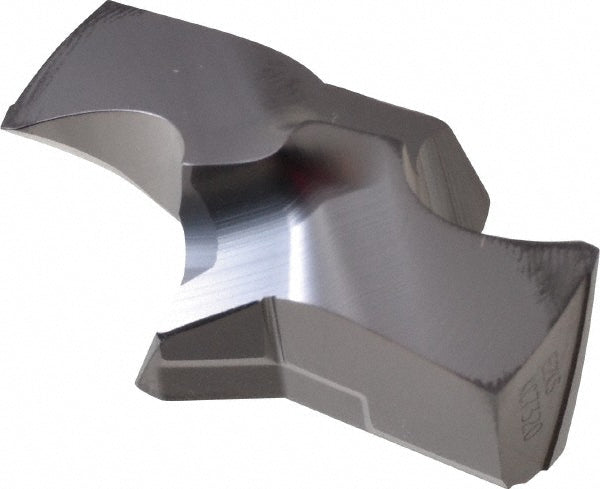

Carbide Insert, Grade KCMS15, AlTiN - Kennametal 3381190

Kennametal

Carbide Insert, Grade KCMS15, AlTiN - Kennametal 3381190

MFR# 3381190Series KSEM

$290.58List $354.69 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeKCMS15
CoatingAlTiN

Description

The Kennametal 3381190 is a carbide indexable insert, grade KCMS15, AlTiN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsDrilling
Coating finishAlTiN
Coating processPVD
Coolant throughNo
Cutting diameter in1-1/4
DrillingStackedPlates
Drill point angle140
Flute length (mm)16.00
Flute typeHelical
Functional length0.6250
Height in5/8
Included angle degree140
Insert geometryHPL
Insert holding methodClamp
Insert seat size8
Iso numberKSEM1250HPL
Manufacturer gradeKCMS15
Material gradeFine Grain
Number of flutes2
Overall length projection0.6250
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Spiral typeRegular Spiral
StyleKSEM
Tip materialSolid Carbide
Tooldimensions2flute/2margin/coolant
