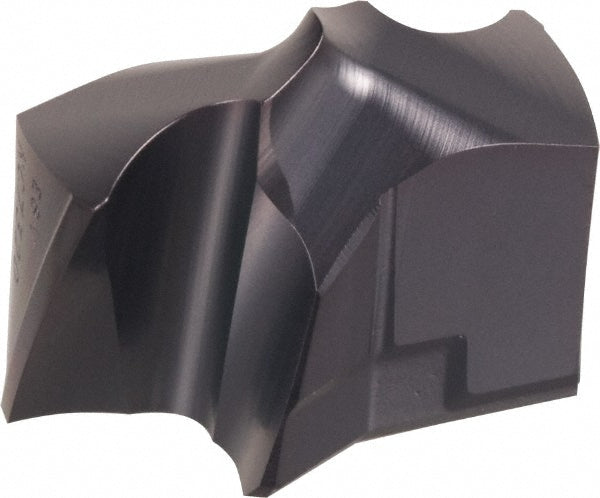

Carbide Insert, Grade KCMS15, AlTiN - Kennametal 3381191

Kennametal

Carbide Insert, Grade KCMS15, AlTiN - Kennametal 3381191

MFR# 3381191Series KSEM

$221.73List $270.65 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeKCMS15
CoatingAlTiN

Description

The Kennametal 3381191 is a carbide indexable insert, grade KCMS15, AlTiN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsDrilling
Coating finishAlTiN
Coating processPVD
Coolant throughNo
Cutting diameter0.9449
DrillingStackedPlates
Drill point angle140
Flute length (mm)12.00
Flute typeHelical
Functional length0.4725
Height (mm)15.00
Included angle degree140
Insert geometryHPL
Insert holding methodClamp
Insert seat size4
Iso numberKSEM2400HPLM
Manufacturer gradeKCMS15
Material gradeFine Grain
Number of flutes2
Overall length projection0.6105
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Spiral typeRegular Spiral
StyleKSEM
Tip materialSolid Carbide
Tooldimensions2flute/2margin/coolant
