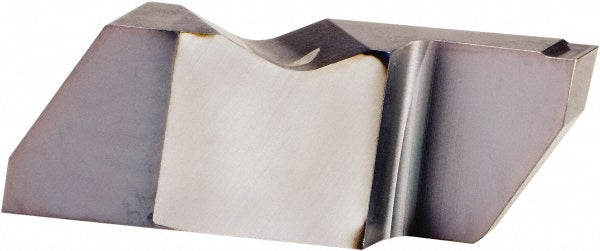

Carbide Insert, Grade KC5010, AlTiN - Kennametal 3397246
MFR# 3397246Series Top Notch
$27.85List $34.00
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 3397246 is a carbide indexable insert, grade KC5010, AlTiN coated.
Specifications
Chip breakerK
Coating finishAlTiN
Coating processPVD
Corner radius0.0075
Cutting height0.3440
Cutting width0.0787
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size3M200
Insert styleNGD
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.1600
Maximum depth of cut range0.1500 to 0.2000
Measurement typeMetric
Multi use toolNo
Overall width0.196
