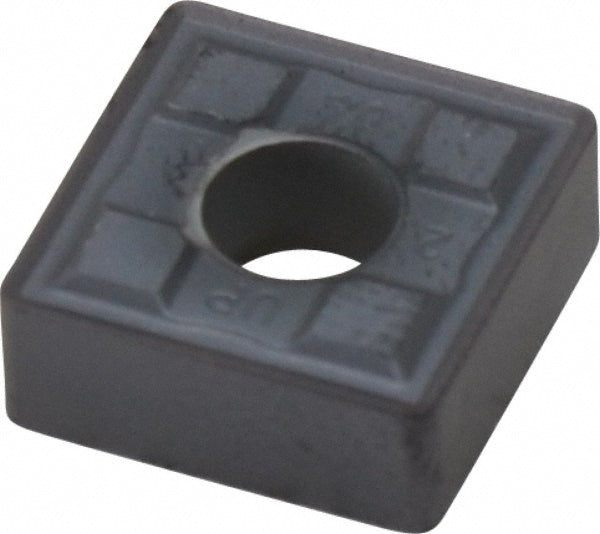

SNMG432 Carbide Insert, Grade KC5010, TiAlN - Kennametal 3403435

Kennametal

SNMG432 Carbide Insert, Grade KC5010, TiAlN - Kennametal 3403435

MFR# 3403435ISO/ANSI# SNMG120408Series KENLOC

$23.52List $28.71 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeS - Square
GradeKC5010
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 3403435 is a SNMG432 carbide indexable insert, grade KC5010, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeSNMG432
Ansi size code432
Chip breakerUP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.2031
Included angle90
Industry standard numberSNMG432UP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeS - Square
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG432
Iso insert codeSNMG120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number3403435
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle15
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
