Kennametal

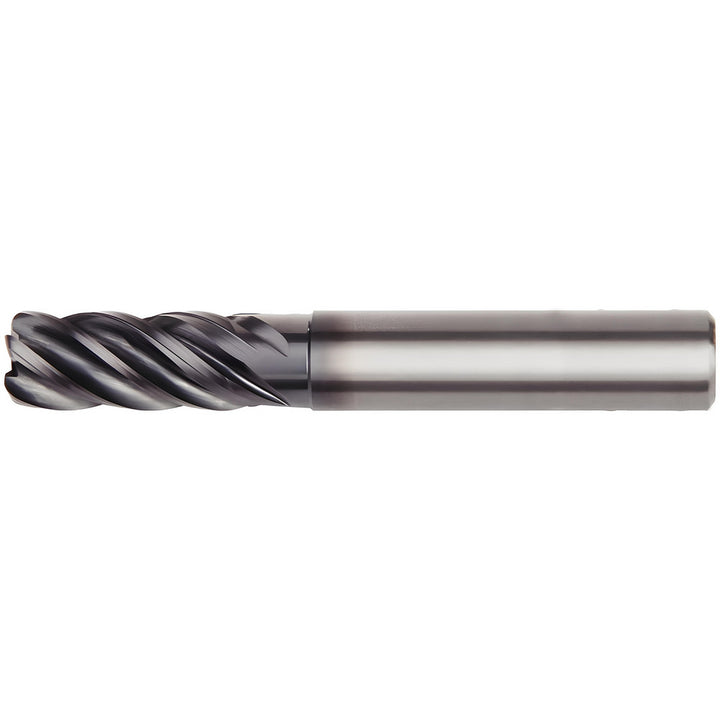

0.3150" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 3524492

MFR# 3524492Series UDDE

$108.05List $138.58 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 3524492 is a 0.3150 5-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, cast iron, superalloys & titanium, hard material. Series UDDE.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0787

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withER Single Angle Standard Collets

Helix styleHigh

Length of cut0.7480

Length typeStandard

Material applicationSteel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter0.3150

Mill diameter tolerance-0.025000/-0.047000 mm

Neck diameter0.2961

Number of flutes5

Overall length (mm)68.00

PitchNormal

Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length0.9449

Shank diameter (mm)8.00

Shank diameter tolerance+0.000/-0.009 mm

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
