Kennametal

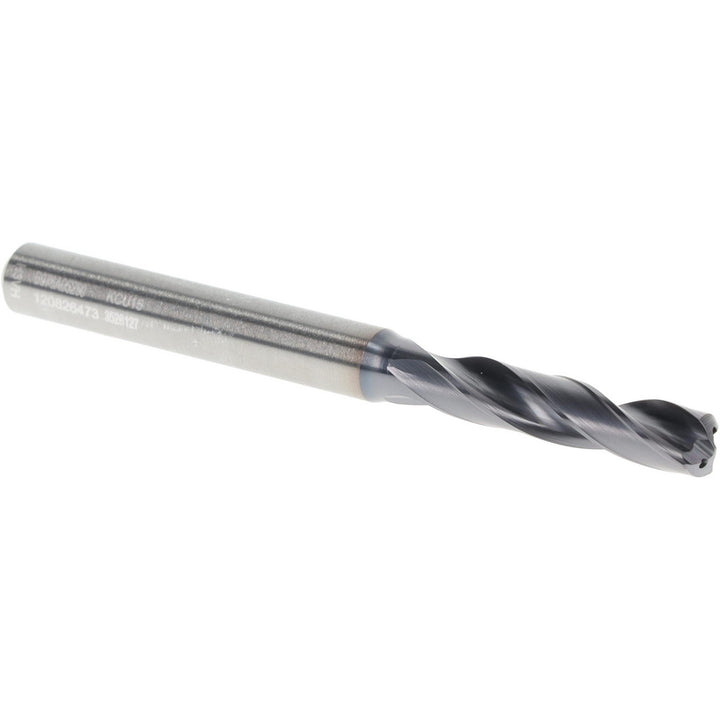

0.2067" Solid Carbide Stub Drill Bit, TiAlN, 140° point - Kennametal 3528127
MFR# 3528127Series B976A
$104.10List $133.31
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Kennametal 3528127 is a 0.2067" Solid Carbide Stub drill bit with a TiAlN finish, 140° point. Series B976A.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.0002 to +0.0006 in; +0.004 to +0.016 mm
Drill bit size0.2067
Drill bit size range0.2000 to 0.2500
Drill length typeStub
Drill point angle140
Drill point length0.0344
Flute by diameter ratio3xD
Flute length1.1024
Flute typeRegular Spiral
Maximum drilling depth0.7874
Number of flutes2
Overall length2.5984
Point typeStandard
Shank diameter0.2362
Shank length1.4173
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
