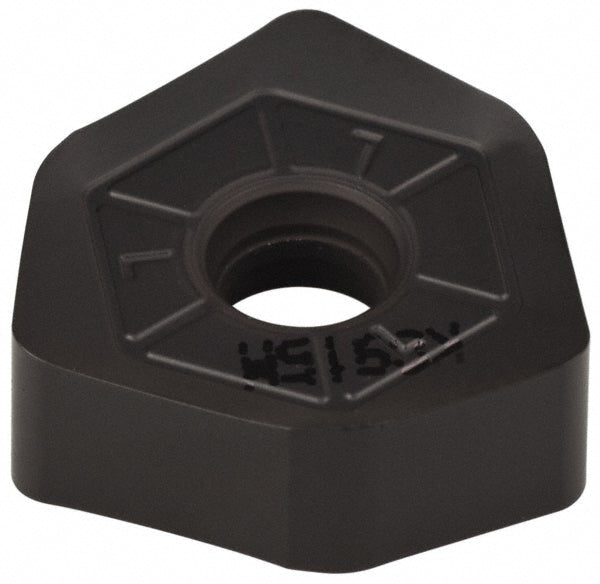

XNGJ0905ANSNGD3W Solid Carbide Insert, Grade KCK15, TiN - Kennametal 3547022
MFR# 3547022ISO/ANSI# XNGJ0905ANSNGD3WCat# XNGJ0905ANSNGD3WSeries XNGJ
$48.35List $59.02
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeTrigon
GradeKCK15
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 3547022 is a XNGJ0905ANSNGD3W solid carbide indexable insert, grade KCK15, TiN coated. Suited for cast iron.
Specifications
Ansi codeXNGJ535ANSNGD3W
Chip breakerGD
Coating finishTiN
Coating processMTCVD
Corner radius in1/16
Cutter series compatibilityDodeka
Cutting edge styleWiper
Included angle degree80
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size5
Insert size code535
Insert styleXNGJ
Iso codeXNGJ0905ANSNGD3W
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberXNGJ0905ANSNGD3W
Manufacturer gradeKCK15
Material applicationCast Iron
Material gradeC1
Maximum depth of cut0.3345
Multi use toolYes
Number of cutting edges6
Primary workpiece materialCast Iron
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2170
Thickness range0.2000 to 0.2200
Width in5/8
