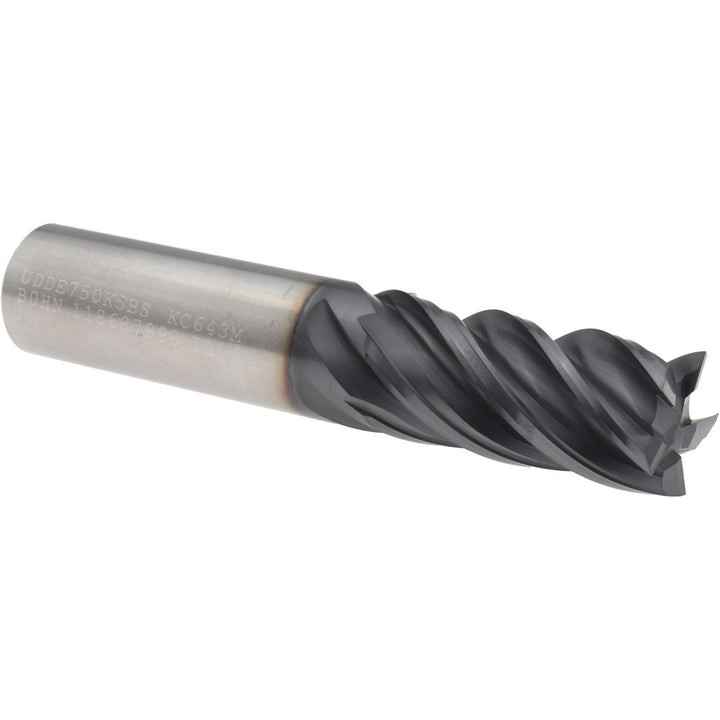

3/4" 5-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 3580819

Kennametal

3/4" 5-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 3580819

MFR# 3580819Series UDDE

$475.71List $610.12 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 3580819 is a 3/4 5-flute Solid Carbide (KC643M) square end mill with a AlTiN finish for longer tool life. Suited for steel, high-temp alloy. 1-1/2 length of cut, 4 overall length. Series UDDE.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in1-1/2
Length of cut range1.5000 - 2.0000
Length typeRegular
Material gradeKC643M
Mill diameter in3/4
Mill diameter tolerance+0.0000/-0.0020 in
Number of flutes5
Overall length in4
Primary workpiece materialSteel; High-Temp Alloy
Shank diameter in3/4
Shank diameter tolerance+0.00000/-0.00051 in
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexYes
