Kennametal

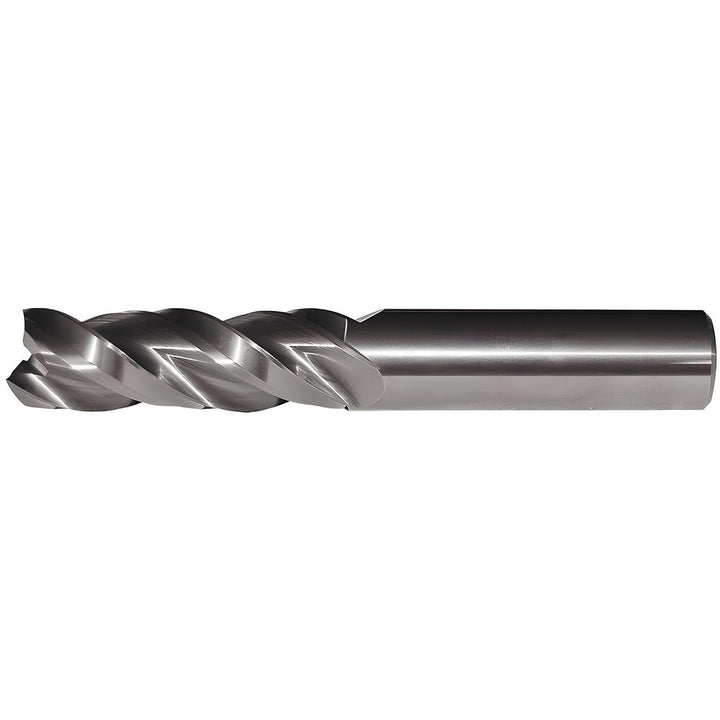

0.1181" 3-Flute Solid Carbide Corner Radius End Mill - Kennametal 3637429
MFR# 3637429Series ABDE
$54.94List $70.46
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
Description
The Kennametal 3637429 is a 0.1181 3-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. Series ABDE.
Specifications
CentercuttingYes
ChipbreakerNo
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withER Single Angle Standard Collets
Helix styleHigh
Length of cut0.4724
Length typeLong
Material applicationNon-Ferrous Metal
Material gradeSubmicron
Material removal typeRoughing
Mill diameter0.1181
Mill diameter tolerance-0.014000/-0.028000 in
Number of flutes3
Overall length (mm)38.00
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Shank diameter (mm)3.00
Shank diameter tolerance0.0000/-0.0060 in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
