Kennametal
Carbide Insert, Grade KC9320, TiCN - Kennametal 3637576
MFR# 3637576Series Top Notch
$35.79List $43.68
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC9320
MaterialCarbide
CoatingTiCN
Description

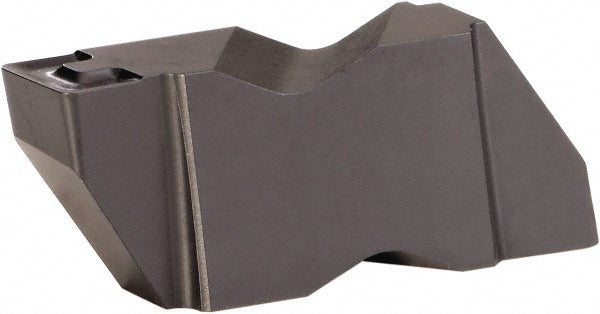

The Kennametal 3637576 is a carbide indexable insert, grade KC9320, TiCN coated.
Specifications
Chip breakerK
Coating finishTiCN
Coating processCVD
Corner radius0.0075
Cutting height0.3440
Cutting width0.0620
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert holding methodClamp
Insert materialCarbide
Insert size3062
Insert styleNG
Manufacturer gradeKC9320
Material gradeC3; C4
Maximum depth of cut0.0940
Maximum depth of cut range0.0750 to 0.1000
Measurement typeMetric
Multi use toolNo
Overall width0.196
