Kennametal

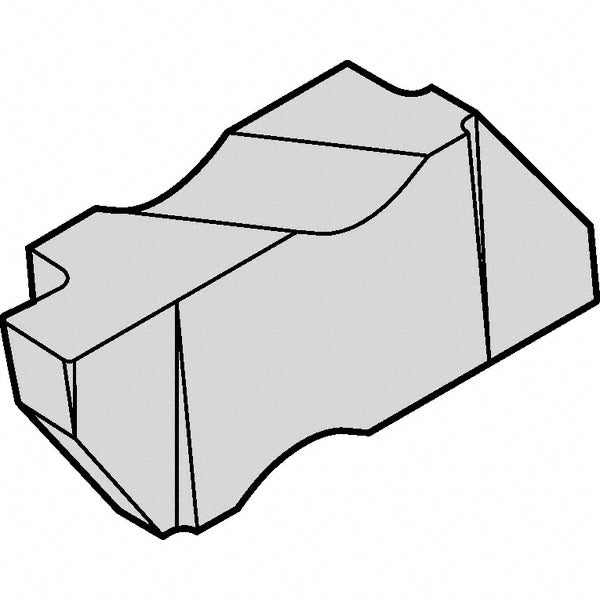

Diamond Tipped Insert, Grade KD1425 - Kennametal 3639215
MFR# 3639215Series Top Notch
$219.04List $262.65
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKD1425
MaterialDiamond Tipped
Description
The Kennametal 3639215 is a diamond tipped indexable insert, grade KD1425.
Specifications
Chip breakerEST
Corner radius0.0075
Cutting height0.3440
Cutting width0.0940
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert holding methodClamp
Insert materialDiamond Tipped
Insert size3094
Insert styleNG
Manufacturer gradeKD1425
Maximum depth of cut0.1500
Maximum depth of cut range0.1500 to 0.2000
Measurement typeMetric
Multi use toolNo
Overall width0.196
