Kennametal

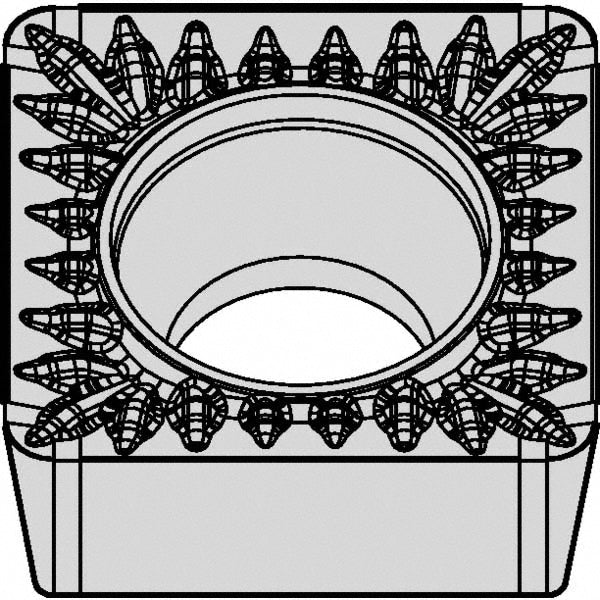

S - Square 3/8" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3639762
MFR# 3639762ISO/ANSI# SCMT09T308Series Screw-On
$29.73List $36.29
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeS - Square
GradeKCP25
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3639762 is a carbide indexable insert, grade KCP25, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeSCMT3252
Ansi size code3252
Chip breakerMP
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1732
Included angle90
Industry standard numberSCMT3252MP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert shapeS - Square
Insert size code3252
Insert styleSCMT
Insert thickness in5/32
Iso insert codeSCMT09T308
Iso size code09T308
Length range0.3000 - 0.4000
Manufacturers catalog number3639762
Manufacturer gradeKCP25
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle12
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
