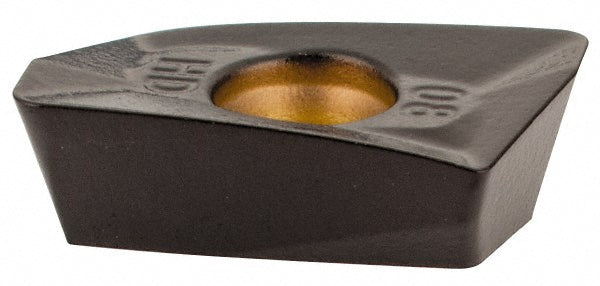

EDPT10T308PDERHD Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 3641736

Kennametal

EDPT10T308PDERHD Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 3641736

MFR# 3641736ISO/ANSI# EDPT10T308PDERHDCat# EDPT10T308PDERHDSeries EDPT

$26.58List $32.44 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC17/64
ShapeParallelogram
GradeKCPK30
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 3641736 is a EDPT10T308PDERHD solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Ansi codeEP1008EHD
Chip breakerHD
Coating finishTiN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityMill 1-10
Cutting edge styleHoned
Included angle degree70
Inscribed circle in17/64
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code10T308
Insert styleEDPT
Iso codeEDPT10T308PDERHD
Length0.4740
Length range0.4500 to 0.5000
Manufacturers catalog numberEDPT10T308PDERHD
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1476
Thickness range0.1250 to 0.1500
Width in17/64
