Kennametal

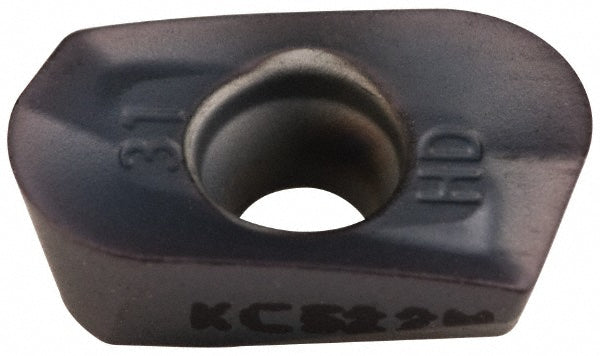

EDPT10T331PDERHD Solid Carbide Insert, Grade KC522M, TiAlN - Kennametal 3642136
MFR# 3642136ISO/ANSI# EDPT10T331PDERHDCat# EDPT10T331PDERHDSeries EDPT
$25.27List $30.84
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC522M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 3642136 is a EDPT10T331PDERHD solid carbide indexable insert, grade KC522M, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi codeEP1031EHD
Chip breakerHD
Coating finishTiAlN
Coating processPVD
Corner radius0.1220
Cutter series compatibilityMill 1-10
Cutting edge styleHoned
Included angle degree70
Inscribed circle0.2640
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code10T331
Insert styleEDPT
Iso codeEDPT10T331PDERHD
Length0.4523
Length range0.4500 to 0.5000
Manufacturers catalog numberEDPT10T331PDERHD
Manufacturer gradeKC522M
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1480
Thickness range0.1250 to 0.1500
Width0.2640
