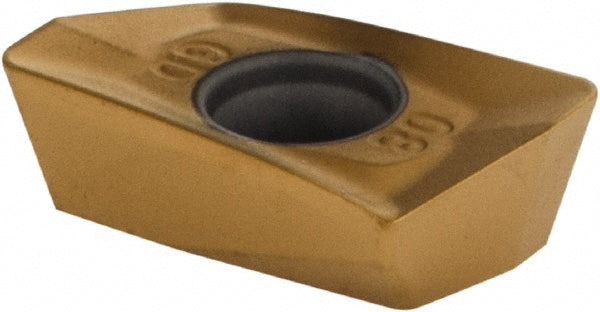

EDPT10T308PDSRGD Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 3642170

Kennametal

EDPT10T308PDSRGD Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 3642170

MFR# 3642170ISO/ANSI# EDPT10T308PDSRGDCat# EDPT10T308PDSRGDSeries EDPT

$25.50List $31.13 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 3642170 is a EDPT10T308PDSRGD solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeEP1008SGD
Chip breakerGD
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMill 1-10
Cutting edge styleChamfered; Honed
Included angle degree70
Inscribed circle0.2650
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code10T308
Insert styleEDPT
Iso codeEDPT10T308PDSRGD
Length0.4740
Length range0.4500 to 0.5000
Manufacturers catalog numberEDPT10T308PDSRGD
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1480
Thickness range0.1250 to 0.1500
Width0.2650
