Kennametal

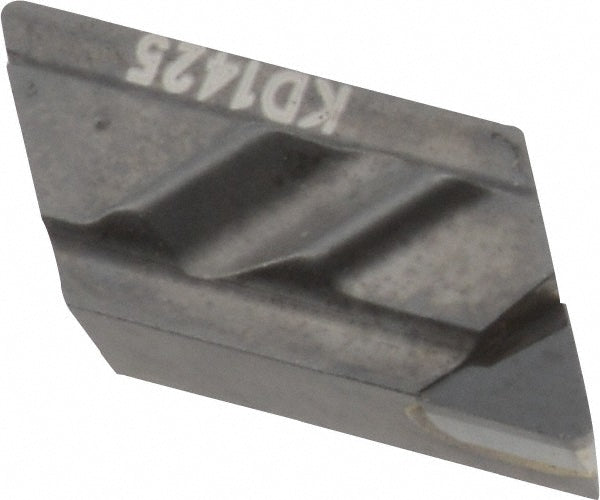

KCGX110304L15 Carbide Insert, Grade KD1425, PCD - Kennametal 3643853
MFR# 3643853ISO/ANSI# KCGX110304L15Series Top Not
$151.16List $181.26
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeKD1425
MaterialCarbide
CoatingPCD
Description
The Kennametal 3643853 is a KCGX110304L15 carbide indexable insert, grade KD1425, PCD coated. Suited for non-ferrous metal.
Specifications
ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishPCD
Coating processUncoated
Corner radius0.0156
Hole diameter0.0000
Included angle55
Inscribed circle in1/4
Insert handLeft Hand
Insert height0.1250
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert size code51
Insert styleNPL
Iso codeKCGX110304L15
Manufacturer gradeKD1425
Material gradeN10; N20
Maximum depth of cut0.1250
Msc manufacturer numberNPL51
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Relief angle0
ShapeParallelogram
Side length0.3750
StandardsNPL51; KCGX110304L15
Thickness in1/8
Width in1/4
