Kennametal

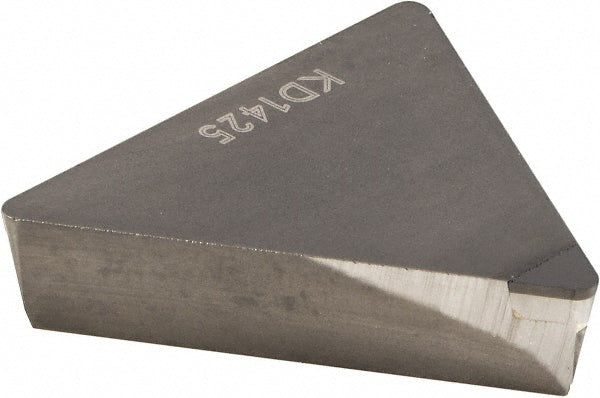

TPGN220408F PCD Insert, Grade KD1425 - Kennametal 3648588
MFR# 3648588ISO/ANSI# TPG220408Series KENDEX
$134.24List $160.98
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeKD1425
MaterialPCD
Description
The Kennametal 3648588 is a TPGN220408F pcd indexable insert, grade KD1425. Suited for non-ferrous metal.
Specifications
Ansi insert codeTPG432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating processUncoated
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle60
Industry standard numberTPG432F
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.8661
Insert materialPCD
Insert shapeT - Triangle
Insert size code432
Insert styleTPG
Insert thickness in3/16
Iso codeTPGN220408F
Iso insert codeTPG220408
Iso size code220408
Length range0.7000 - 10.0000
Manufacturers catalog number3648588
Manufacturer gradeKD1425
Material gradeN05; N10
Maximum depth of cut0.2884
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
Single or multi tippedSingle Tipped
StandardsANSI; ISO
Tolerance codeG
Width0.8661
Wiper edgeNo
