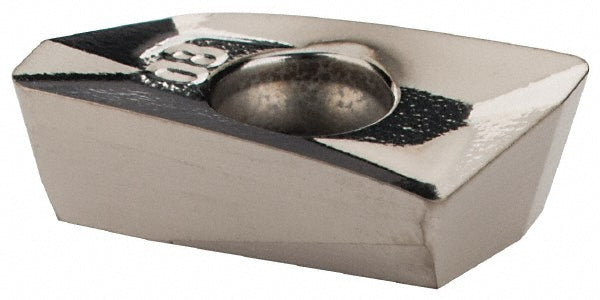

EDCT10T308PDERLDJ Solid Carbide Insert, Grade KC422M, TiB2 - Kennametal 3649188

Kennametal

EDCT10T308PDERLDJ Solid Carbide Insert, Grade KC422M, TiB2 - Kennametal 3649188

MFR# 3649188ISO/ANSI# EDCT10T308PDERLDJCat# EDCT10T308PDERLDJSeries EDCT

$29.94List $36.55 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeKC422M
MaterialSolid Carbide
CoatingTiB2

Description

The Kennametal 3649188 is a EDCT10T308PDERLDJ solid carbide indexable insert, grade KC422M, TiB2 coated. Suited for non-ferrous metal.

Specifications

Ansi codeEC1008ELDJ
Chip breakerLDJ
Coating finishTiB2
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMill 1-10
Cutting edge styleHoned
Included angle degree70
Inscribed circle0.2650
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code10T308
Insert styleEDCT
Iso codeEDCT10T308PDERLDJ
Length0.4740
Length range0.4500 to 0.5000
Manufacturers catalog numberEDCT10T308PDERLDJ
Manufacturer gradeKC422M
Material applicationNon-Ferrous Metal
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle15
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1476
Thickness range0.1250 to 0.1500
Width in17/64
