Kennametal

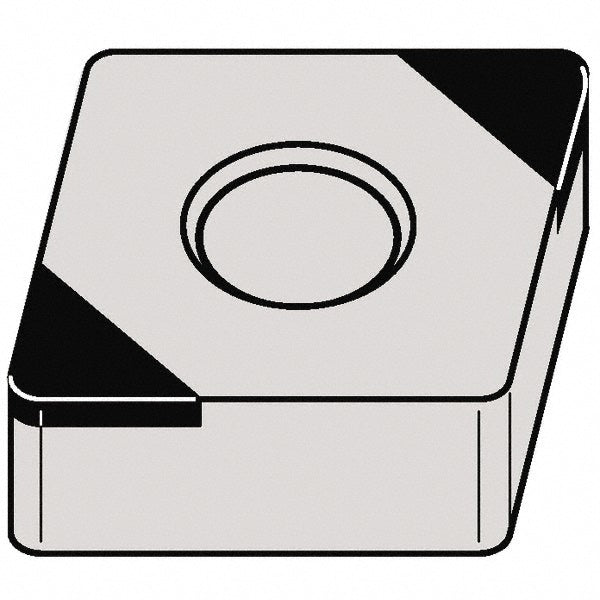

C - Diamond (Rhombic) 80-Deg 1/2" IC PCBN Insert, Grade KB1630 - Kennametal 3652767
MFR# 3652767ISO/ANSI# CNGA120408Series KENLOC
$136.85List $164.10
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKB1630
MaterialPCBN
Description
The Kennametal 3652767 is a pcbn indexable insert, grade KB1630. Suited for hard material.
Specifications
Ansi insert codeCNGA432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsCast Iron (K) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance
Hole diameter0.2031
Included angle80
Industry standard numberCNGA432S0425MT
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialPCBN
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso insert codeCNGA120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number3652767
Manufacturer gradeKB1630
Material gradeH25; H35
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
