Kennametal

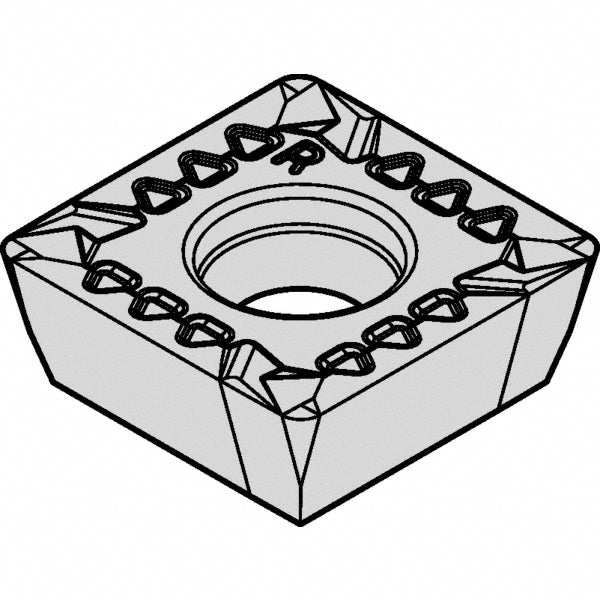

SPET10T304PPELGB2 Solid Carbide Insert, Grade KC725M, TiN - Kennametal 3654505
MFR# 3654505ISO/ANSI# SPET10T304PPELGB2Cat# SPET10T304PPELGB2Series SPET
$20.90List $25.52
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKC725M
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 3654505 is a SPET10T304PPELGB2 solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Coating finishTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Hole diameter0.1339
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.3500 to 0.4000
Insert handLeft Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size31
Insert size code31251
Insert styleSPET
Iso codeSPET10T304PPELGB2
Manufacturers catalog numberSPET10T304PPELGB2
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.5000
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Relief angle11.00
Thickness in5/32
Thickness range0.1500 to 0.1750
