Kennametal

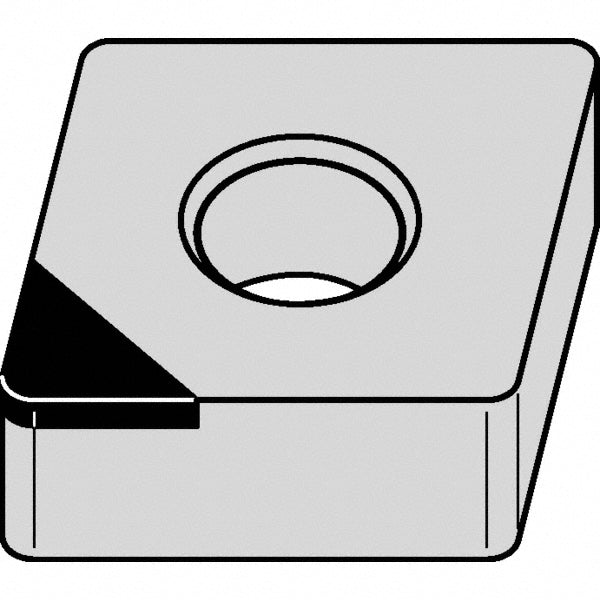

C - Diamond (Rhombic) 80-Deg 1/2" IC PCD Insert, Grade KD1400 - Kennametal 3655880
MFR# 3655880ISO/ANSI# CNGA120404Series KENLOC
$136.38List $163.53
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKD1400
MaterialPCD
Description
The Kennametal 3655880 is a pcd indexable insert, grade KD1400. Suited for non-ferrous metal.
Specifications
Ansi insert codeCNGA431
Ansi size code431
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance
Hole diameter0.2031
Included angle80
Industry standard numberCNGA431FST
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialPCD
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNGA
Insert thickness in3/16
Iso insert codeCNGA120404
Iso size code120404
Length range0.5000 - 0.6000
Manufacturers catalog number3655880
Manufacturer gradeKD1400
Material gradeN05; N15
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
Single or multi tippedSingle Tipped
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
