Kennametal

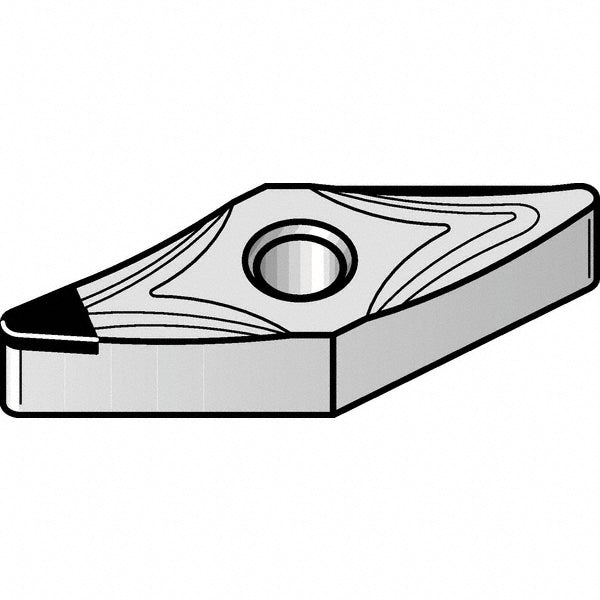

V - Diamond (Rhombic) 35-Deg 3/8" IC PCD Insert, Grade KD1400 - Kennametal 3656072
MFR# 3656072ISO/ANSI# VNMS160404Series KENLOC
$163.62List $196.21
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKD1400
MaterialPCD
Description
The Kennametal 3656072 is a pcd indexable insert, grade KD1400. Suited for non-ferrous metal.
Specifications
Ansi insert codeVNMS331
Ansi size code331
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance
Hole diameter0.1500
Included angle35
Industry standard numberVNMS331FST
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3076
Insert materialPCD
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVNMS
Insert thickness in3/16
Iso insert codeVNMS160404
Iso size code160404
Length range0.7000 - 10.0000
Manufacturers catalog number3656072
Manufacturer gradeKD1400
Material gradeN05; N15
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
Single or multi tippedSingle Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
