Kennametal

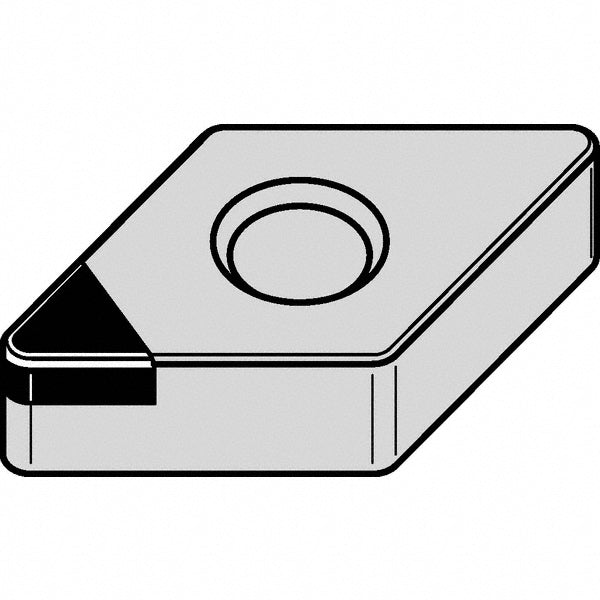

D - Diamond (Rhombic) 55-Deg 1/2" IC PCD Insert, Grade KD1425 - Kennametal 3656464
MFR# 3656464ISO/ANSI# DNGA150408Series KENLOC
$136.38List $163.53
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeKD1425
MaterialPCD
Description
The Kennametal 3656464 is a pcd indexable insert, grade KD1425. Suited for non-ferrous metal.
Specifications
Ansi insert codeDNGA432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle55
Industry standard numberDNGA432FST
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2200
Insert materialPCD
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNGA
Insert thickness in3/16
Iso insert codeDNGA150408
Iso size code150408
Length range0.7000 - 10.0000
Manufacturers catalog number3656464
Manufacturer gradeKD1425
Material gradeN05; N10
Maximum depth of cut0.0500
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
Single or multi tippedSingle Tipped
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
