Kennametal

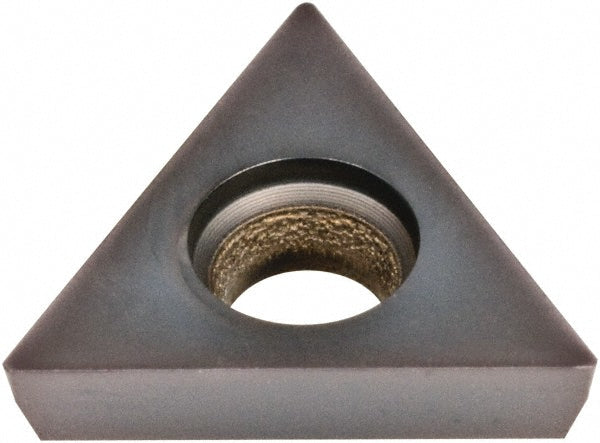

TPGW110204S01015C PCBN Insert, Grade KB1630 - Kennametal 3657749
MFR# 3657749ISO/ANSI# TPGW110204Series Screw-On
$194.96List $233.78
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeKB1630
MaterialPCBN
Description
The Kennametal 3657749 is a TPGW110204S01015C pcbn indexable insert, grade KB1630. Suited for hard material.
Specifications
Ansi insert codeTPGW2151
Ansi size code2151
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating processUncoated
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsCast Iron (K) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance
Hole diameter0.1102
Included angle60
Industry standard numberTPGW2151S0415C
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialPCBN
Insert shapeT - Triangle
Insert size code2151
Insert styleTPGW
Insert thickness in3/32
Iso codeTPGW110204S01015C
Iso insert codeTPGW110204
Iso size code110204
Length range0.4000 - 0.5000
Manufacturers catalog number3657749
Manufacturer gradeKB1630
Material gradeH25; H35
Maximum depth of cut0.1442
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialHard Material
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeG
Width0.4331
Wiper edgeNo
