Kennametal

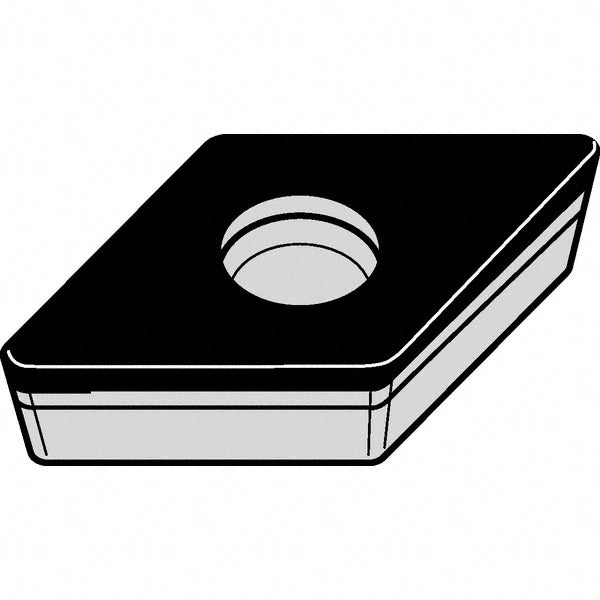

D - Diamond (Rhombic) 55-Deg 1/4" IC PCBN Insert, Grade KB1610 - Kennametal 3658098
MFR# 3658098ISO/ANSI# DCGW070204Series Screw-On
$137.96List $165.44
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeD - Diamond (Rhombic) 55-Deg
GradeKB1610
MaterialPCBN
Description
The Kennametal 3658098 is a pcbn indexable insert, grade KB1610. Suited for hard material.
Specifications
Ansi insert codeDCGW2151
Ansi size code2151
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeC
Coating processUncoated
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsHardened Materials (H) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1102
Included angle55
Industry standard numberDCGW2151S0415C
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6104
Insert materialPCBN
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code2151
Insert styleDCGW
Insert thickness in3/32
Iso insert codeDCGW070204
Iso size code070204
Length range0.6000 - 0.6500
Manufacturers catalog number3658098
Manufacturer gradeKB1610
Material gradeH05; H15
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakePositive
Rake angle0
Relief angle7
Side clearancePositive
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
