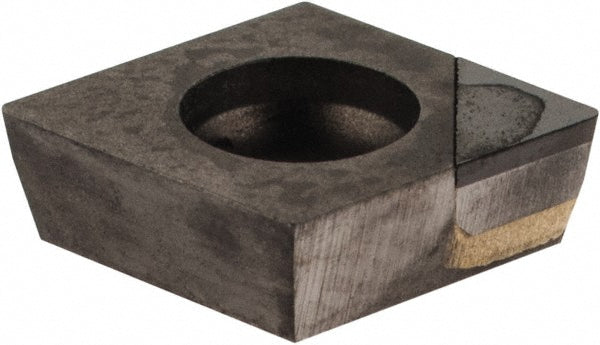

C - Diamond (Rhombic) 80-Deg 1/4" IC PCD Insert, Grade KD1425 - Kennametal 3659999
MFR# 3659999ISO/ANSI# CPGW060202Series Screw-On
$130.97List $157.04
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeKD1425
MaterialPCD
Description
The Kennametal 3659999 is a pcd indexable insert, grade KD1425. Suited for non-ferrous metal.
Specifications
Ansi insert codeCPGW21505
Ansi size code21505
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating processUncoated
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1102
Included angle80
Industry standard numberCPGW21505FST
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialPCD
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21505
Insert styleCPGW
Insert thickness in3/32
Iso insert codeCPGW060202
Iso size code060202
Length range0.0000 - 0.3000
Manufacturers catalog number3659999
Manufacturer gradeKD1425
Material gradeN05; N10
Maximum depth of cut0.0500
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
Single or multi tippedSingle Tipped
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
