Kennametal

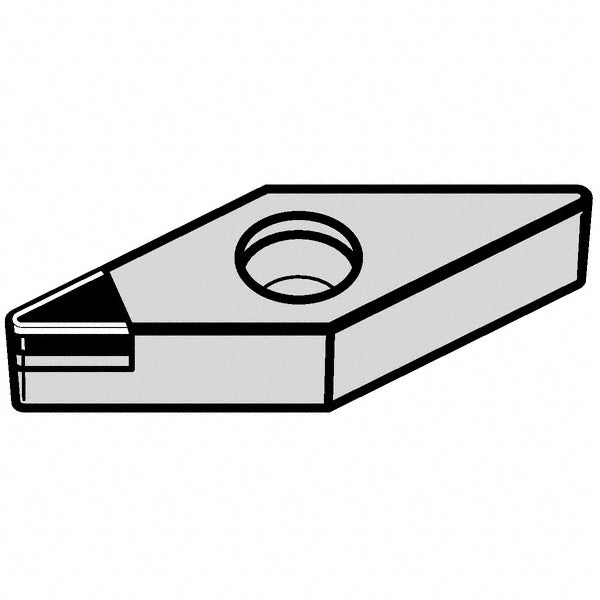

V - Diamond (Rhombic) 35-Deg 3/8" IC PCD Insert, Grade KD1425 - Kennametal 3660023
MFR# 3660023ISO/ANSI# VBGW160404Series Screw-On
$130.97List $157.04
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKD1425
MaterialPCD
Description
The Kennametal 3660023 is a pcd indexable insert, grade KD1425. Suited for non-ferrous metal.
Specifications
Ansi insert codeVBGW331
Ansi size code331
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeB
Coating processUncoated
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle35
Industry standard numberVBGW331FST
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3076
Insert materialPCD
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVBGW
Insert thickness in3/16
Iso insert codeVBGW160404
Iso size code160404
Length range0.7000 - 10.0000
Manufacturers catalog number3660023
Manufacturer gradeKD1425
Material gradeN05; N10
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle0
Relief angle5
Side clearancePositive
Single or multi tippedSingle Tipped
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
