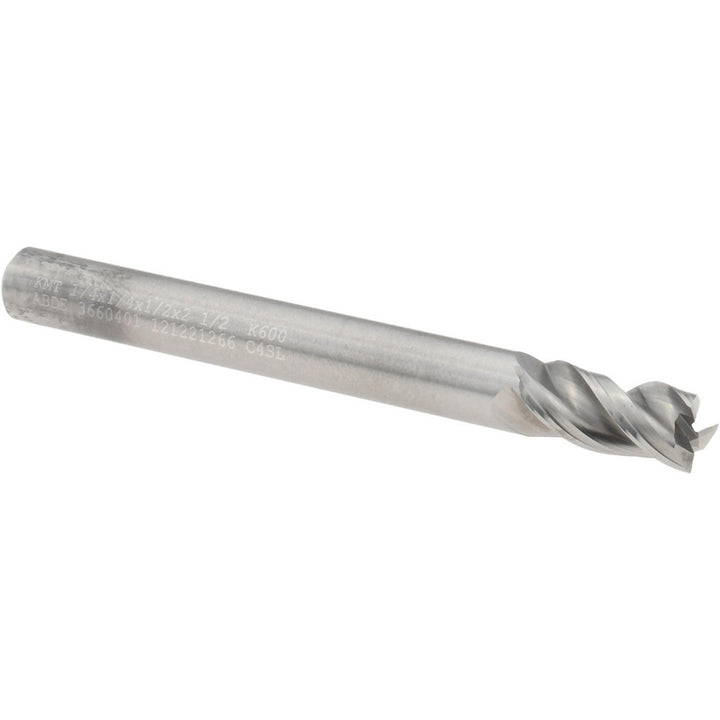

0.2500" 3-Flute Solid Carbide Square End Mill - Kennametal 3660401

Kennametal

0.2500" 3-Flute Solid Carbide Square End Mill - Kennametal 3660401

MFR# 3660401Series ABDE

$49.32List $63.26 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Kennametal 3660401 is a 0.2500 3-flute Solid Carbide (Micrograin) square end mill. 1/2 length of cut. Series ABDE.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSquare
Extended reachNo
Flute directionRight Hand
Helix angle38
Length of cut in1/2
Length typeRegular
Material gradeMicrograin
Mill diameter0.2500
Mill diameter frac in1/4
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Shank diameter in1/4
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight
Single or double endSingle
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
