Kennametal

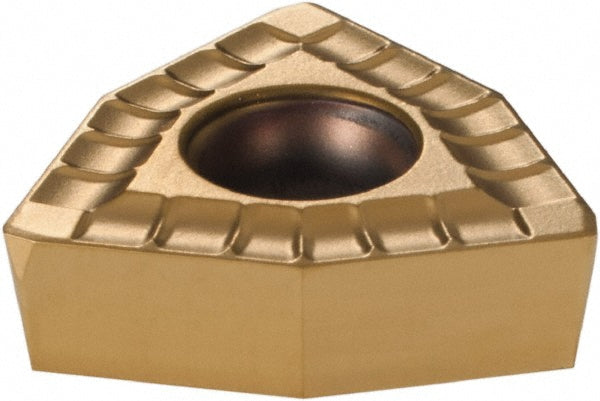

0.5906" IC Carbide Insert, Grade KC7140, TiCN - Kennametal 3669084
MFR# 3669084
$40.61List $49.57
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC7140
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3669084 is a carbide indexable insert, grade KC7140, TiCN coated.
Specifications
ChipbreakerMD
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Hole diameter0.2165in
Included angle degree84
Inscribed circle0.5906
Insert handNeutral
Insert materialCarbide
Insert size090508
Insert styleDFT
Length0.3906
Manufacturer gradeKC7140
Relief angle9
ShapeTrigon
Thickness0.2067
