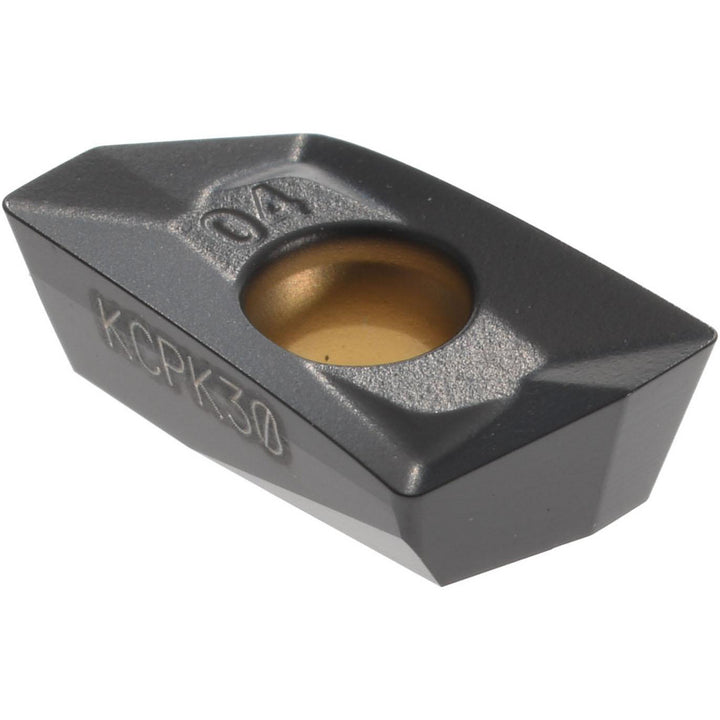

EDCT10T304PDERLD Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 3682515

Kennametal

EDCT10T304PDERLD Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 3682515

MFR# 3682515ISO/ANSI# EDCT10T304PDERLDCat# EDCT10T304PDERLDSeries EDCT

$29.74List $36.30 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC17/64
ShapeParallelogram
GradeKCPK30
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 3682515 is a EDCT10T304PDERLD solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Ansi codeEC1004ELD
Chip breakerLD
Coating finishTiN
Coating processCVD
Corner radius in1/64
Cutter series compatibilityMill 1-10
Cutting edge styleHoned
Included angle degree70
Inscribed circle in17/64
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code10T304
Insert styleEDCT
Iso codeEDCT10T304PDERLD
Length0.4740
Length range0.4500 to 0.5000
Manufacturers catalog numberEDCT10T304PDERLD
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1480
Thickness range0.1250 to 0.1500
Width in17/64
