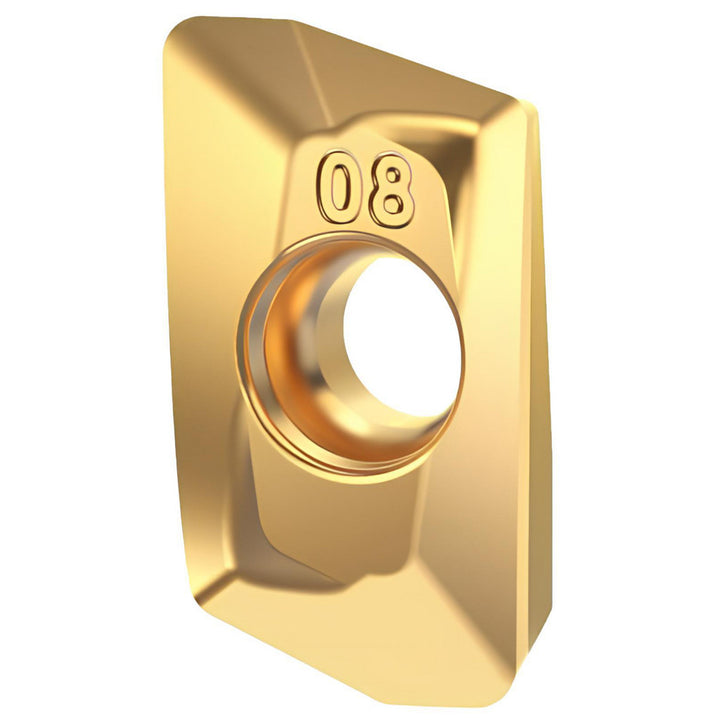

EDCT10T312PDERLD Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 3682655
MFR# 3682655ISO/ANSI# EDCT10T312PDERLDCat# EDCT10T312PDERLDSeries EDCT
$28.63List $34.95
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 3682655 is a EDCT10T312PDERLD solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeEC1012ELD
Chip breakerLD
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityMill 1-10
Cutting edge styleHoned
Included angle degree70
Inscribed circle0.2650
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code10T312
Insert styleEDCT
Iso codeEDCT10T312PDERLD
Length0.4750
Length range0.4500 to 0.5000
Manufacturers catalog numberEDCT10T312PDERLD
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1480
Thickness range0.1250 to 0.1500
Width0.2650
