Carbide Insert, Grade KC7315, TiAlN - Kennametal 3690716

Kennametal

Carbide Insert, Grade KC7315, TiAlN - Kennametal 3690716

MFR# 3690716Series KSEM

$199.17List $243.12 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeKC7315
CoatingTiAlN

Description

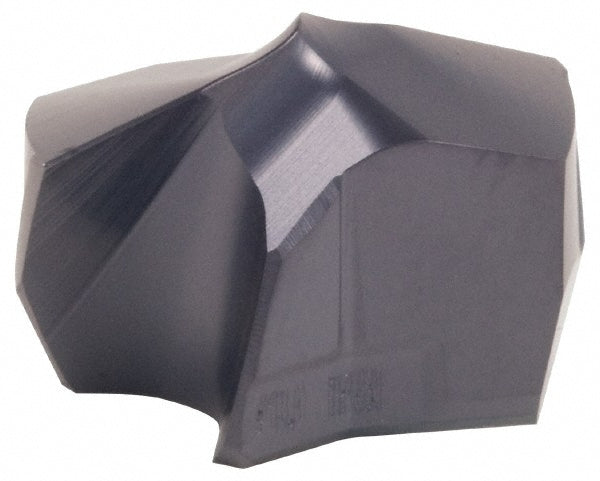

The Kennametal 3690716 is a carbide indexable insert, grade KC7315, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.9055
Drill point angle140
Flute length (mm)11.00
Flute typeHelical
Functional length0.4528
Height in29/64
Included angle degree140
Insert geometryHPG
Insert holding methodClamp
Insert seat size4
Iso numberKSEMP2300HPGM
Manufacturer gradeKC7315
Material gradeFine Grain
Number of flutes2
Overall length projection0.4528
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Spiral typeRegular Spiral
StyleKSEM
Tip materialSolid Carbide
