Carbide Insert, Grade KC7315, TiAlN - Kennametal 3690717

Kennametal

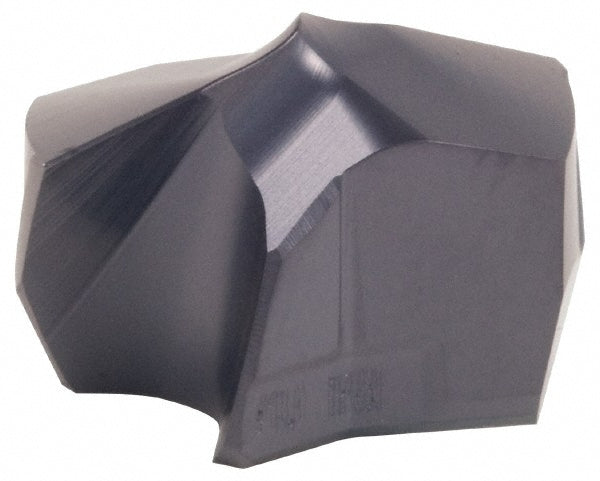

Carbide Insert, Grade KC7315, TiAlN - Kennametal 3690717

MFR# 3690717Series KSEM

$199.17List $243.12 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeKC7315
CoatingTiAlN

Description

The Kennametal 3690717 is a carbide indexable insert, grade KC7315, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.9449
Drill point angle140
Flute length (mm)12.00
Flute typeHelical
Functional length0.4725
Height (mm)12.00
Included angle degree140
Insert geometryHPG
Insert holding methodClamp
Insert seat size4
Iso numberKSEMP2400HPGM
Manufacturer gradeKC7315
Material gradeFine Grain
Number of flutes2
Overall length projection0.4725
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Spiral typeRegular Spiral
StyleKSEM
Tip materialSolid Carbide
